WG972-M-L-E4
- EPA Tier 4
- CARB Tier 4
- EU Stage V

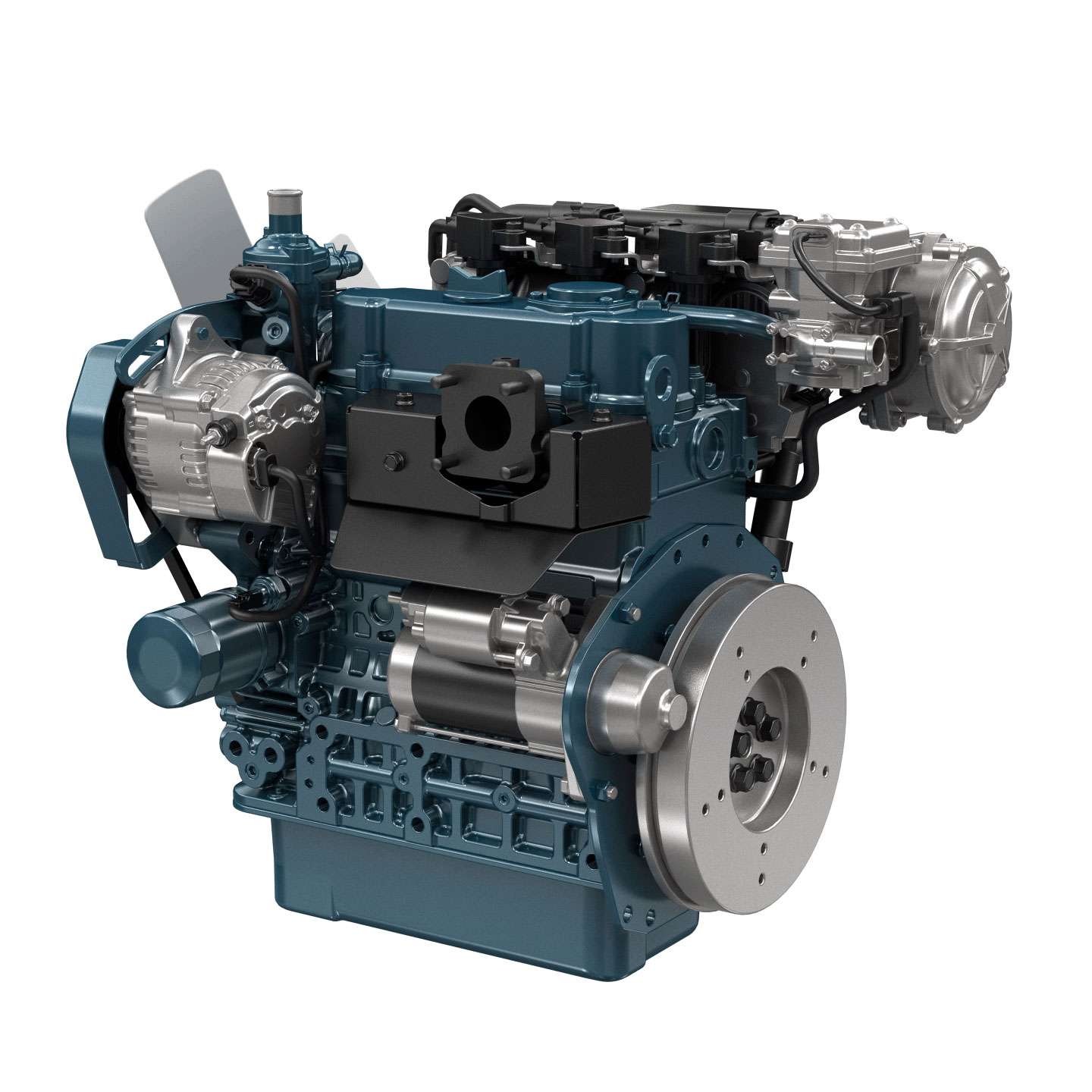

WG972-M-L-E4
- EPA Tier 4
- CARB Tier 4
- EU Stage V
Rated Power
24.3 kW @ 3600 rpm
Performance Curves
Features and Benefits
WG972-M – Evolution of a Proven Platform
The Kubota WG972 series has long been recognized for its excellent fuel flexibility, supporting gasoline, LPG, natural gas, and dual-fuel configurations, as well as for the reliability derived from Kubota’s Super Mini diesel engine design. With low vibration, low noise, and robust engineering, the series has continued to be chosen across a wide range of industrial applications. The WG972-M inherits these strengths while further enhancing ease of installation.
Mature Technologies, Enhanced Usability
The WG972-M incorporates mature control technologies and components developed through other models in the Kubota WG Series. By leveraging Kubota’s accumulated design assets, the WG972-M eliminates the need for intake-system adjustments and offers improved flexibility in governor tuning. These enhancements support smoother integration into a wider variety of machine layouts. While retaining the trusted reliability and core characteristics of the original WG972, the WG972-M has evolved into a platform that offers greater installation freedom and improved user-friendliness.
Engine Specifications
| Engine Model | WG972-M-L-E4 |
|---|---|
| Emission Regulation | EPA Tier 4/CARB Tier 4 + EU Stage V |
| Type | Vertical, water cooled 4-cycle spark ignited engine |
| Fuel | LPG |
| Cylinders | 3 |
| Bore and Stroke mm(in) | 74.5 x 73.6 (2.93 x 2.90) |
| Displacement L (cu.in) | 0.962 (58.7) |
| Aspiration | Naturally aspirated |
| Aftertreatment | Three-way catalyst |
| Rated Output / Speed *1 kW (HP) / rpm |
24.3 (32.6) / 3600 |
| Maximum Torque *1 Nm (lb-ft) / rpm |
70.4 (51.9) / 1800 |
| Length x Width x Height *2 mm (in) |
525 x 471 x 503 (20.7 x 18.5 x 19.8) |
| Dry Weight *2 kg (lb) |
77.1 (170) |
Specifications are subjected to change without prior notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Propane is more than 30%, Butane is less than 70% recommended.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: : 49300 kJ/kg (11800 kcal/kg)
- *1: SAE J1995 gross intermittent
- *2: Exclude cooling fan, aftertreatment unit

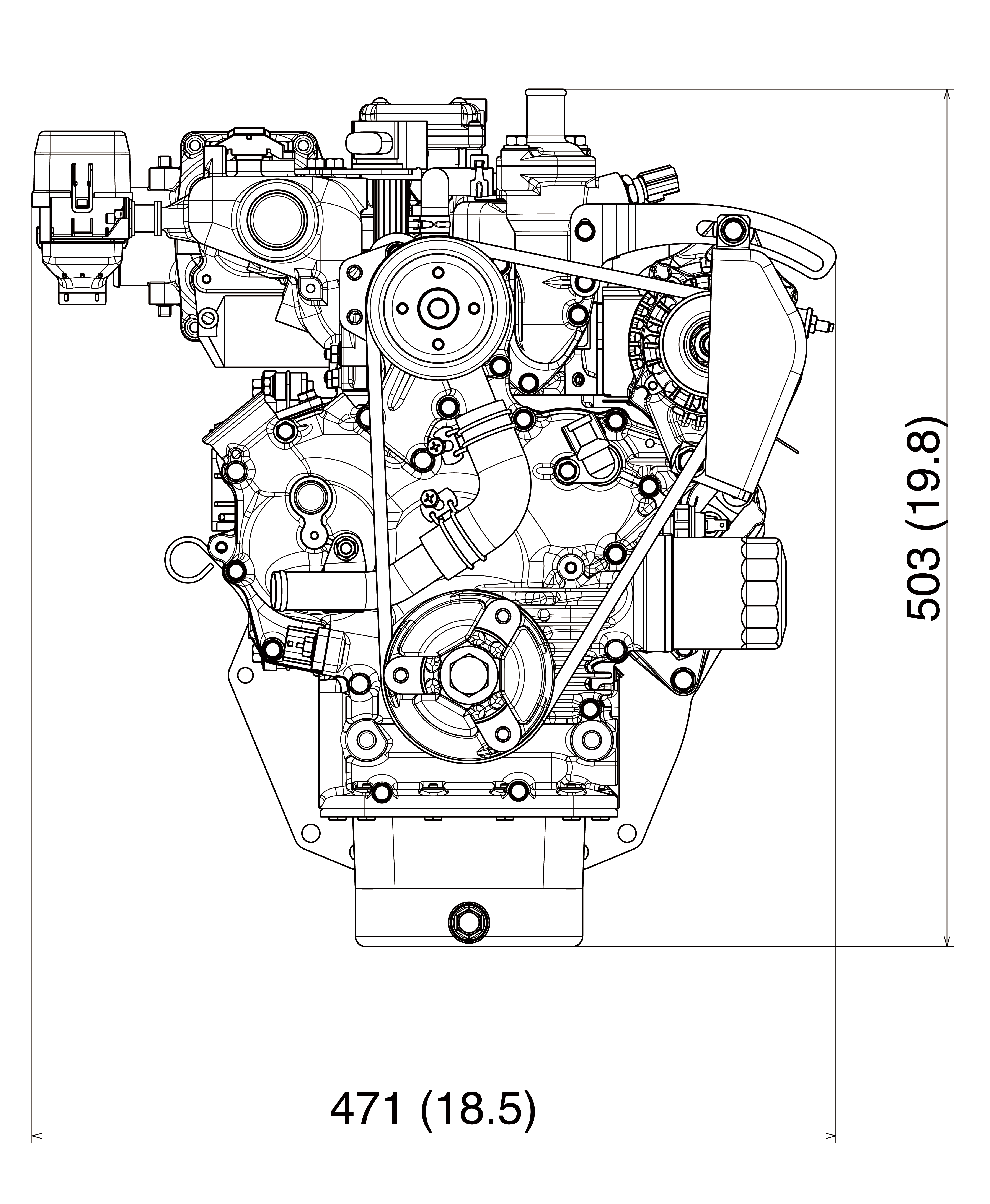

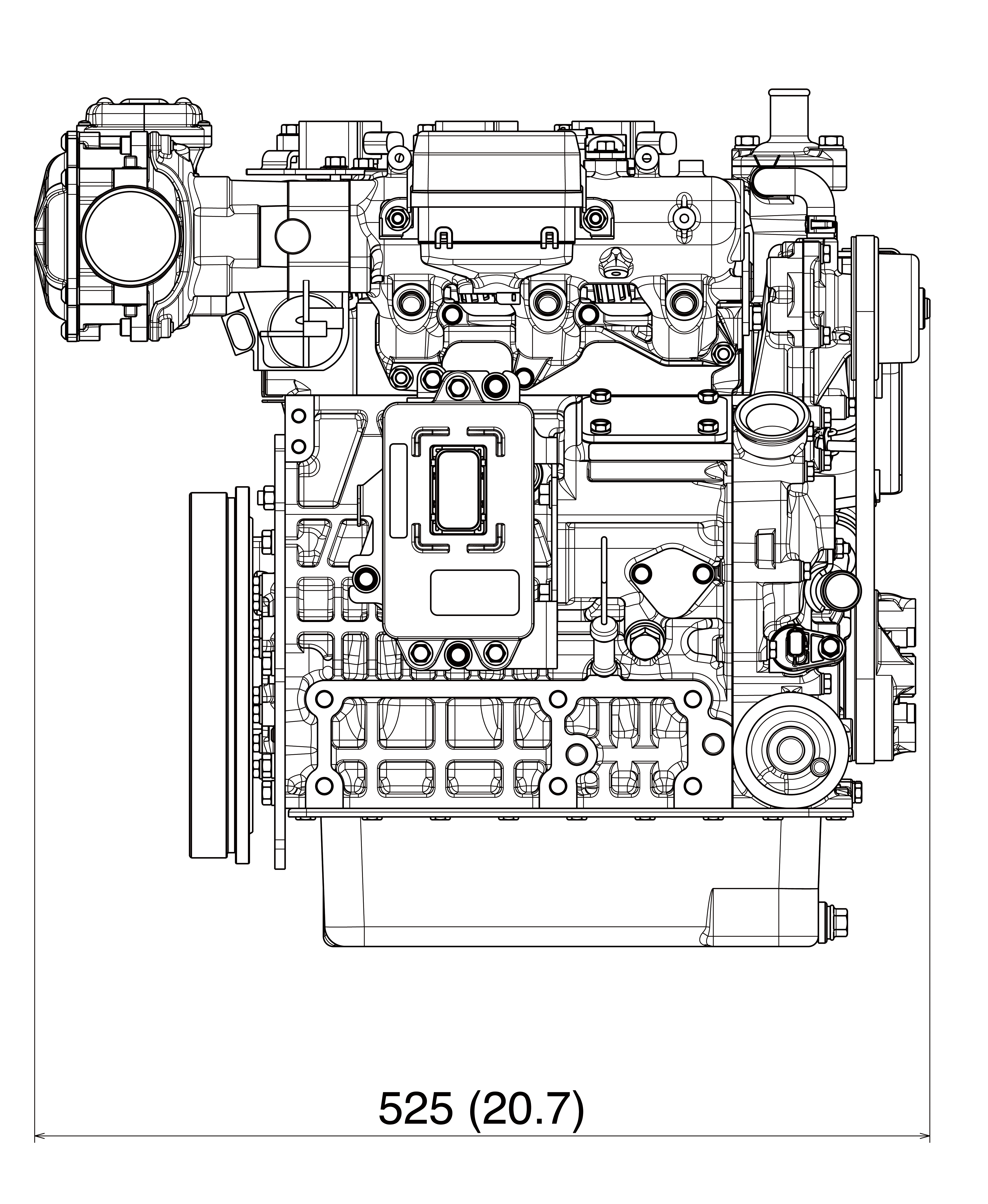

Dimensions
