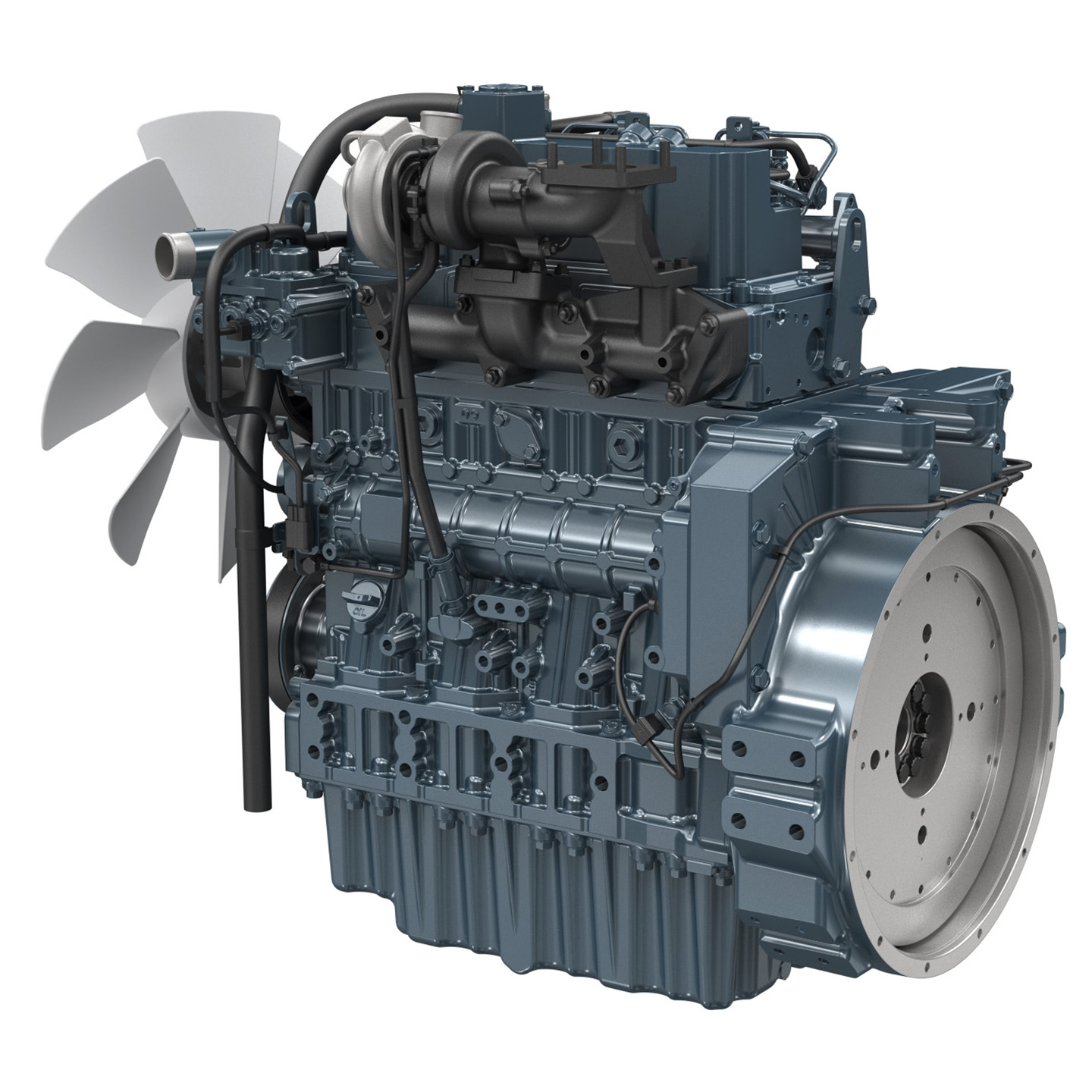

V5009-TI
Rated Power
142.1 kW @ 2200 rpm

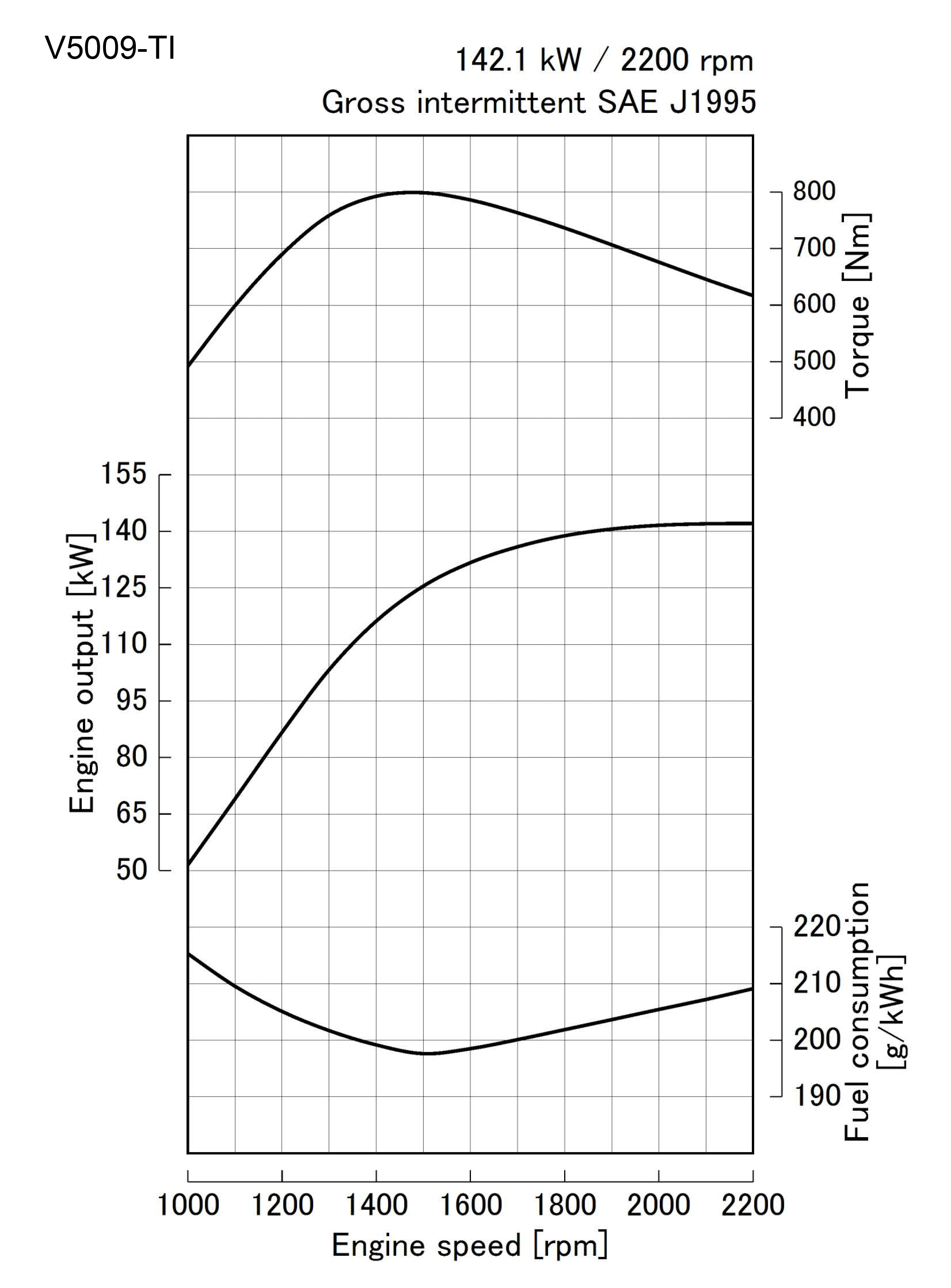

Performance Curves
Features and Benefits
High Power Density
The Kubota 09 Series, a large industrial diesel engine, is a compact and high-output four-cylinder engine that delivers robust power. The V5009-TI offers 142.1 kW/2,200 rpm from a compact 5.017-liter displacement, making it an ideal choice for applications that demand high power output within limited installation space.
Platform Compatibility
The V5009-TI is intended for regions without emissions regulations and shares the same footprint as the emission-regulated model of the V5009. Customers can select the optimal engine specification for their target market while maintaining the same installation footprint.
Common Rail System
The V5009-TI features a Common Rail System (CRS) that enables precise fuel injection control, delivering optimized combustion and responsive performance across a wide range of operating conditions.
The V5009-TI is engineered and validated through extensive durability testing that reflects the long operating hours and high-load conditions demanded by a wide range of industrial applications, delivering reliable engine performance and consistent output even under demanding operating environments. Durability and Robustness
Engine Specifications
| Engine Model | V5009-TI |
|---|---|
| Emission Regulation | - |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 4 |
| Bore and Stroke mm (in) |
110.0 x 132.0 (4.331 x 5.197) |
| Displacement L (cu.in) |
5.017 (306.2) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | None |
| Rated Output / Speed*1 kW (HP) / rpm |
142.1 (190.6) / 2200 |
| Maximum Torque / Speed*1 Nm (lb-ft) / rpm |
798.8 (589.2) / 1500 |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Length x Width x Height*2 (Without Aftertreatment Unit) mm (in) |
894 x 652 x 955 (35.2 x 25.7 x 37.6) |
| Length x Width x Height*3 (With Aftertreatment Unit) mm (in) |
- |
| Dry Weight kg (lb) |
633 (1396) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
- *1: Gross intermittent SAE J1995
- *2: Excluded cooling fan

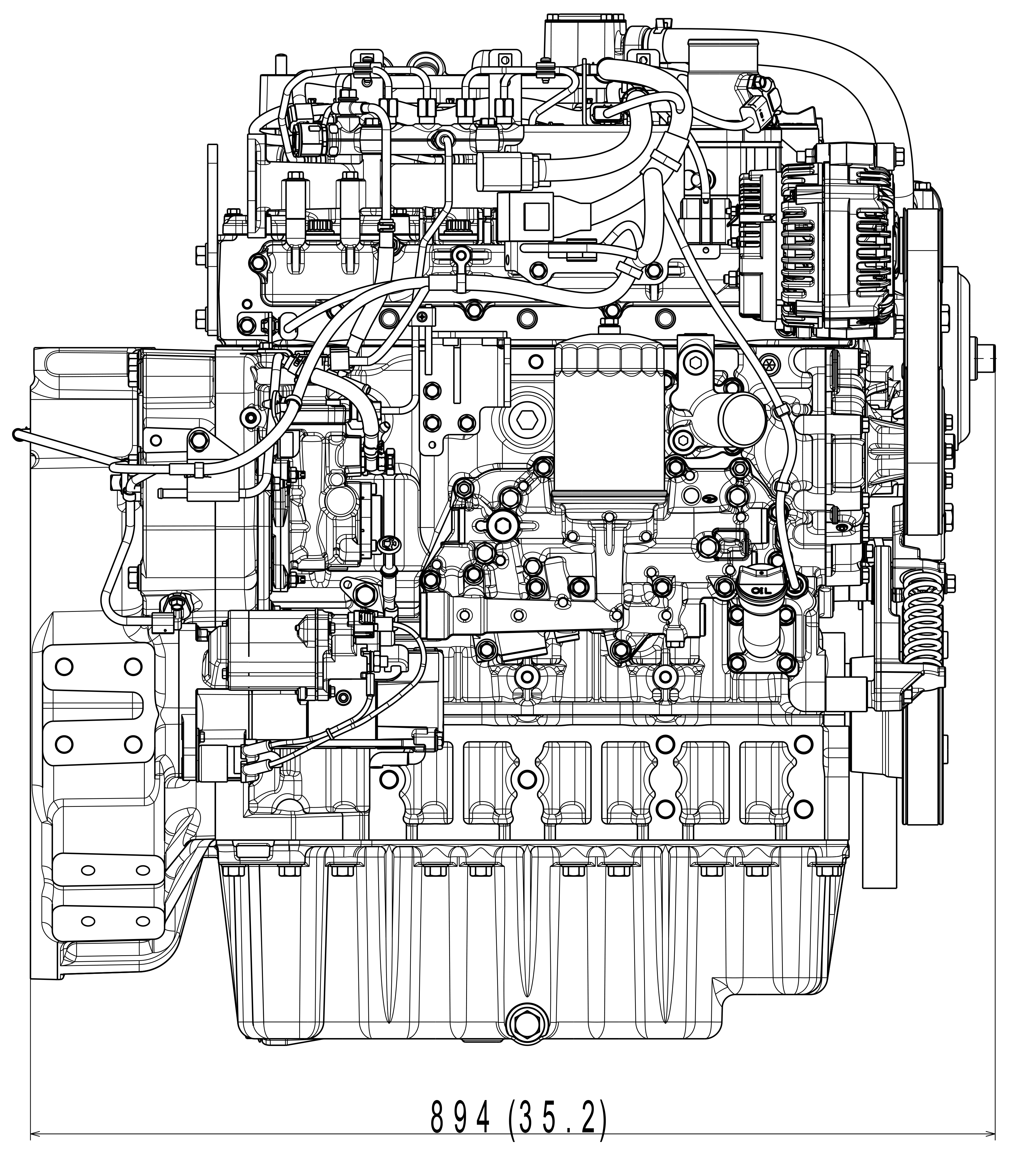

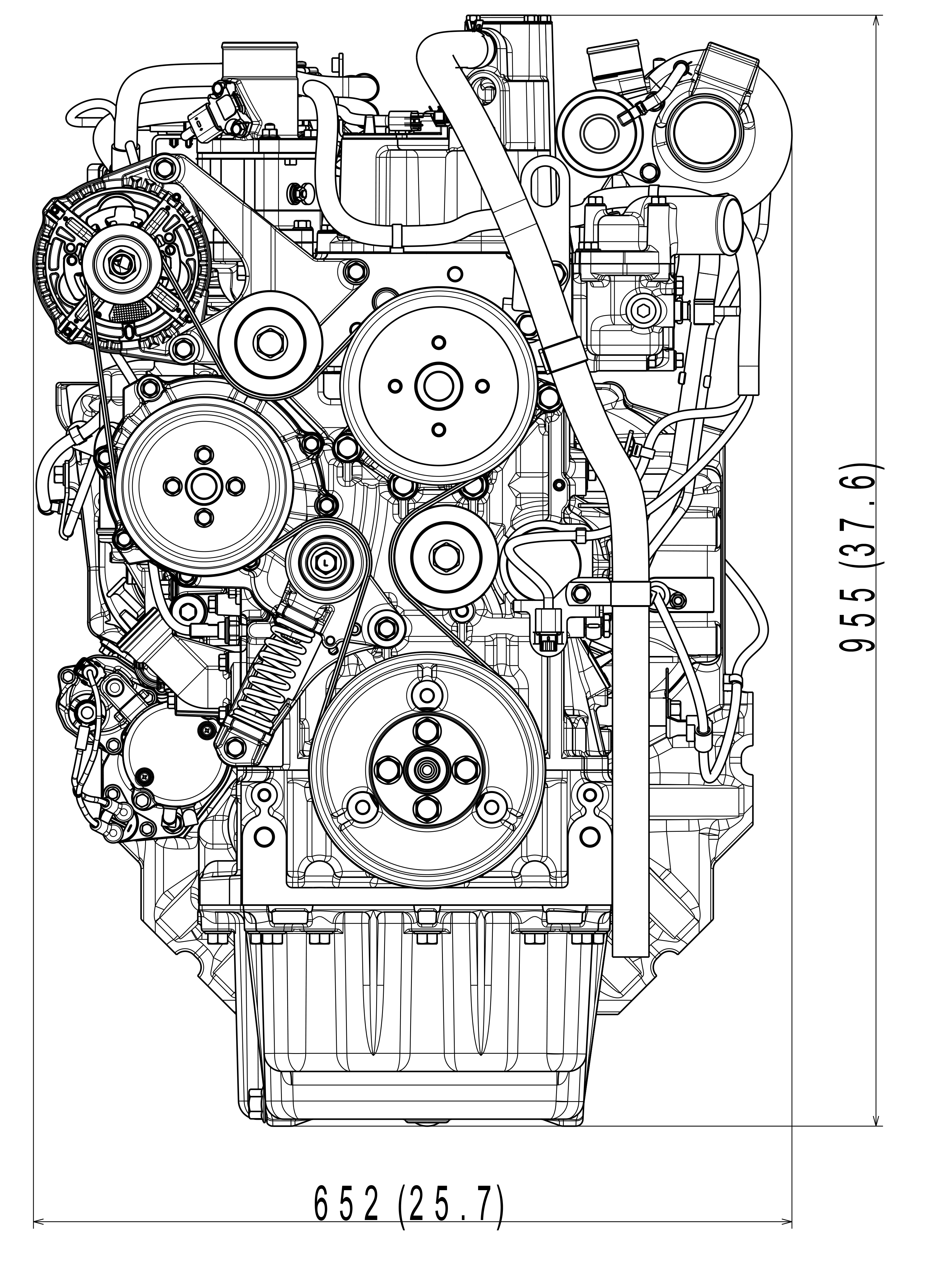

Dimensions
