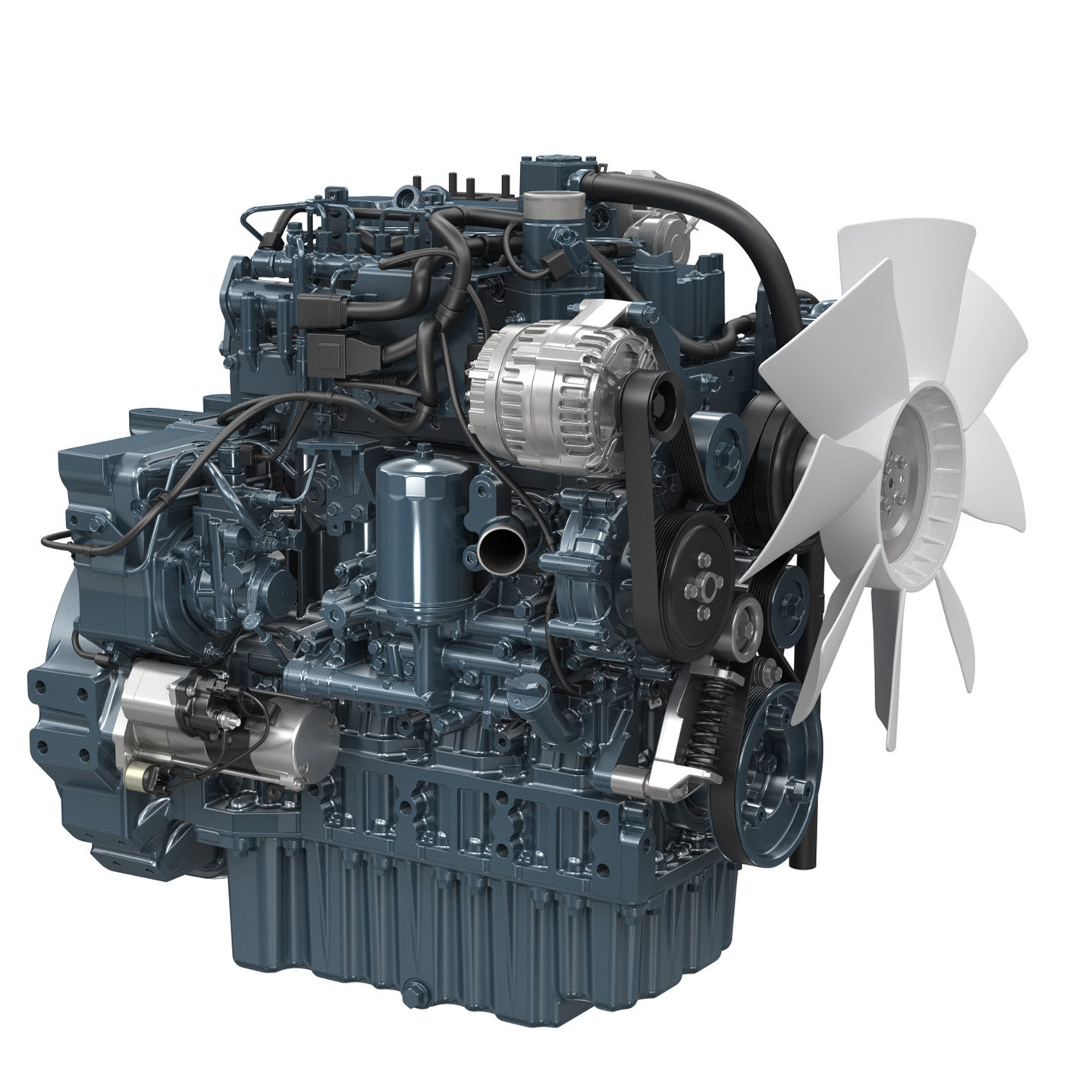

V5009-TIE5
- EPA Tier 4
- CARB Tier 4
- EU Stage V
V5009-TIE5
- EPA Tier 4
- CARB Tier 4
- EU Stage V
V5009-TIE5
- EPA Tier 4
- CARB Tier 4
- EU Stage V
V5009-TIE5
- EPA Tier 4
- CARB Tier 4
- EU Stage V
Rated Power
157.3 kW @ 2200 rpm
Performance Curves
Features and Benefits
High Power Density
Compact 4-cylindar engine offers 157.3 kW high power.
Low Fuel Consumption
Best fuel-efficiency is achieved with optimized combustion.
Great Versatility
100% power take-off at the flywheel and front end Side PTO*1 takes up to 3 hydraulic pumps Choice of flywheel housings and flywheels for OEM coupling *1: Auxiliary PTO
Easy Maintenance
Automatic belt tensioner One-side maintenance
Emission Compliance
The Kubota V5009 engine complies with EU stage V and EPA/CARB Tier 4. In order to meet these stringent regulations, the engine has a Diesel Oxidation Catalyst (DOC), a Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR).
Engine Specifications
| Engine model | V5009-TIE5 |
|---|---|
| Emission regulation | EPA/CARB Tier 4 + EU Stage V |
| Type | Vertical, water cooled 4-cycle diesel engine |
| Cylinders | 4 |
| Bore and Stroke mm (in) |
110.0 x 132.0 (4.331 x 5.197) |
| Displacement L (cu.in) |
5.017 (306.2) |
| Aspiration | Turbocharged + Turbo After Cooler |
| Aftertreatment | DOC + DPF + SCR |
| Rated output / speed*1 kW (HP) / rpm |
157.3 (210.9) / 2200 |
| Maximum torque / speed*1 Nm (lb-ft) / rpm |
883.1 (651.3) / 1500 - 1600 |
| Combustion system | Direct injection |
| Fuel system | Common rail system |
| Length x Width x Height*2 (without aftertreatment unit) mm (in) |
894 × 693 × 967(35.2 × 27.3 × 38.1) |
| Length x Width x Height*3 (with aftertreatment unit) mm (in) |
|
| Dry weight kg (lb) |
632 (1393) |
Specifications are subject to change without notice.
DOC: Diesel Oxidation Catalyst
DPF: Diesel Particulate Filter
SCR: Selective Catalytic Reduction
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
- *1: Gross intermittent SAE J1995
- *2: Excluded DPF muffler,SCR muffler, and cooling fan
Dimensions
