出力レンジ
65.0 kW @ 2600 rpm

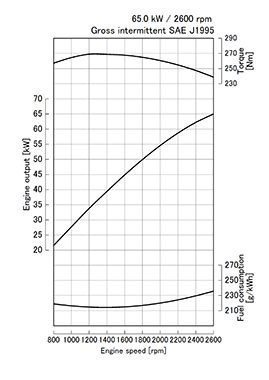

性能曲線
特長
Emissions
Kubota’s WG3800-N-E3 engine has been designed to comply with EPA Tier 2 / CARB Tier 3.
Fuel Flexibility
The installation compatibility that exists between Spark-Ignition engines (SI) and Compression-Ignition engines (CI) is convenient for customers who need fuel flexibility for their products. The Kubota WG3800 includes gasoline, LPG, and natural gas versions, as well as a dual fuel version (gasoline and LPG) to meet customer needs.
Durability and Reliability
Kubota’s WG3800 SI engines are designed based on Kubota V3800 diesel (CI) engines, which are known worldwide as reliable industrial engines and feature combustion chambers, as well as fuel and ignition systems dedicated for SI engines. The WG3800 engine offers very low vibration and extremely low noise.
一般仕様
| 機関名称 | WG3800-N-E3 |
|---|---|
| 適合排出ガス規制 | EPA Tier 2/CARB Tier 3 + EU Stage V |
| 形式 | Vertical, water cooled 4-cycle spark ignited engine |
| 燃料形式 | Natural Gas |
| 気筒数 | 4 |
| 気筒径と行程 mm (in) | 100.0 x 120.0 (3.937 x 4.724) |
| 排気量 L (cu.in) | 3.769 (230.0) |
| 過給方式 | Naturally aspirated |
| 排出ガス後処理装置 | Three-way catalyst |
| 定格出力/回転数 *1 kW (HP) / rpm (SAE J1995に基づくグロス値 ) |
65.0 (87.1) / 2600 |
| 最大トルク/回転数 Nm (lb-ft) / rpm (SAE J1995に基づくグロス値 ) |
269.0 (198.4) / 1200 |
| 外観寸法 *1mm (in) | 700 x 579 x 799 (27.6 x 22.8 x 31.5) |
| 乾燥重量 *2kg (lb) (冷却ファンを除く・後処理装置付き のエンジンは搭載時の値) |
288 (635) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)
- *1: SAE J1995 gross intermittent
- *2: Exclude cooling fan, aftertreatment unit
