出力レンジ
55.4 kW @ 2600 rpm
一般仕様

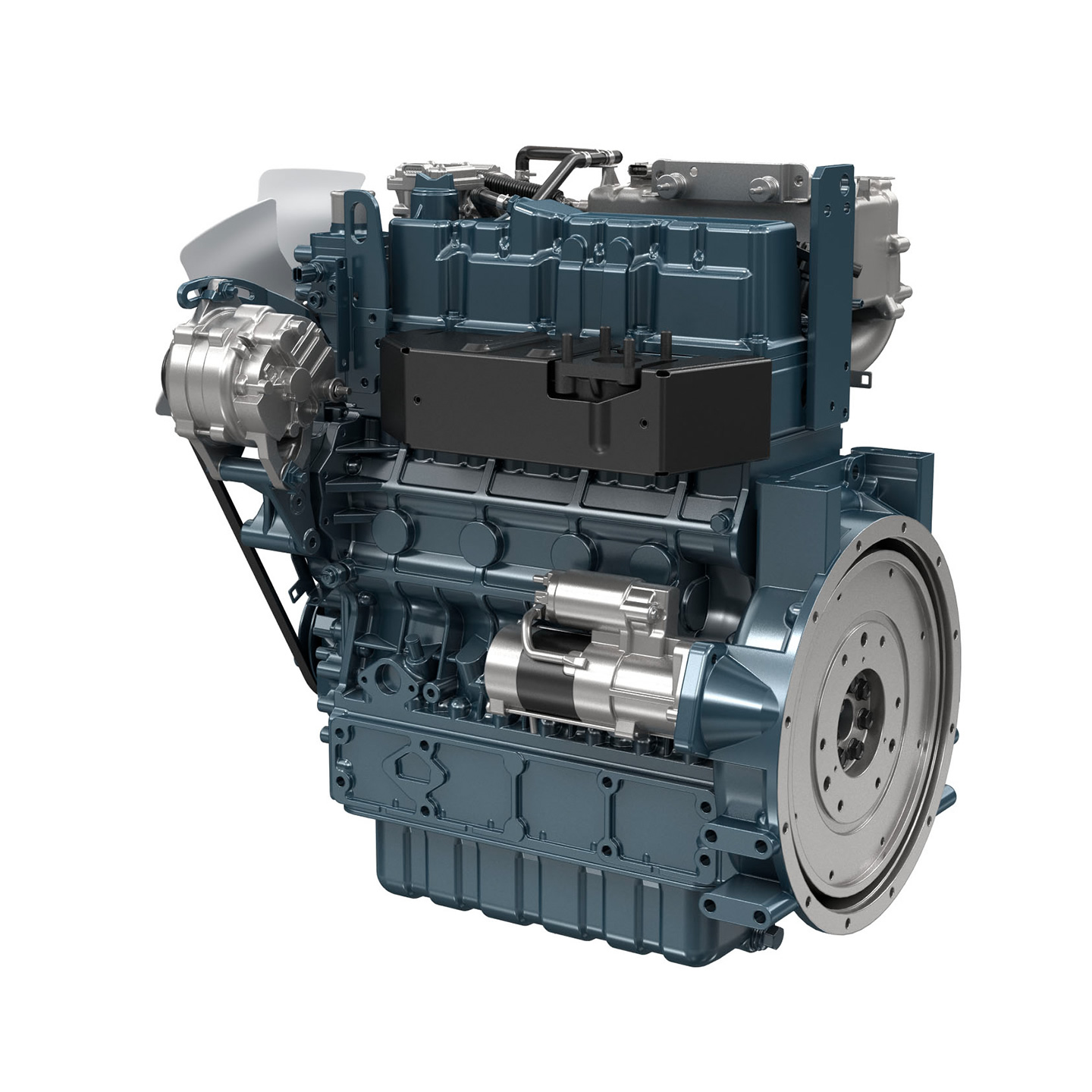

| 機関名称 | WG3800-N-E3 |
|---|---|
| 適合排出ガス規制 | EPA Tier 2/CARB Tier 3 + EU Stage V |
| 形式 | Vertical, water cooled 4-cycle spark ignited engine |
| 燃料形式 | Natural Gas |
| 気筒数 | 4 |
| 気筒径と行程 mm (in) | 100.0 x 120.0 (3.937 x 4.724) |
| 排気量 L (cu.in) | 3.769 (230.0) |
| 過給方式 | Naturally aspirated |
| 排出ガス後処理装置 | Three-way catalyst |
| 定格出力/回転数 *1 kW (HP) / rpm (SAE J1995に基づくグロス値 ) |
55.4 (74.3) / 2600 |
| 最大トルク/回転数 Nm (lb-ft) / rpm (SAE J1995に基づくグロス値 ) |
269.0 (198.4) / 1200 |
| 外観寸法 *1mm (in) | 700 x 579 x 799 (27.6 x 22.8 x 31.5) |
| 乾燥重量 *2kg (lb) (冷却ファンを除く・後処理装置付き のエンジンは搭載時の値) |
288 (635) |
Specifications are subject to change without notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)
- *1: SAE J1995 gross intermittent
- *2: Exclude cooling fan, aftertreatment unit
