出力レンジ
24.3 kW @ 3600 rpm
性能曲線
特長
WG972-M – Evolution of a Proven Platform
The Kubota WG972 series has long been recognized for its excellent fuel flexibility, supporting gasoline, LPG, natural gas, and dual-fuel configurations, as well as for the reliability derived from Kubota’s Super Mini diesel engine design. With low vibration, low noise, and robust engineering, the series has continued to be chosen across a wide range of industrial applications. The WG972-M inherits these strengths while further enhancing ease of installation.
Mature Technologies, Enhanced Usability
The WG972-M incorporates mature control technologies and components developed through other models in the Kubota WG Series. By leveraging Kubota’s accumulated design assets, the WG972-M eliminates the need for intake-system adjustments and offers improved flexibility in governor tuning. These enhancements support smoother integration into a wider variety of machine layouts. While retaining the trusted reliability and core characteristics of the original WG972, the WG972-M has evolved into a platform that offers greater installation freedom and improved user-friendliness.
一般仕様

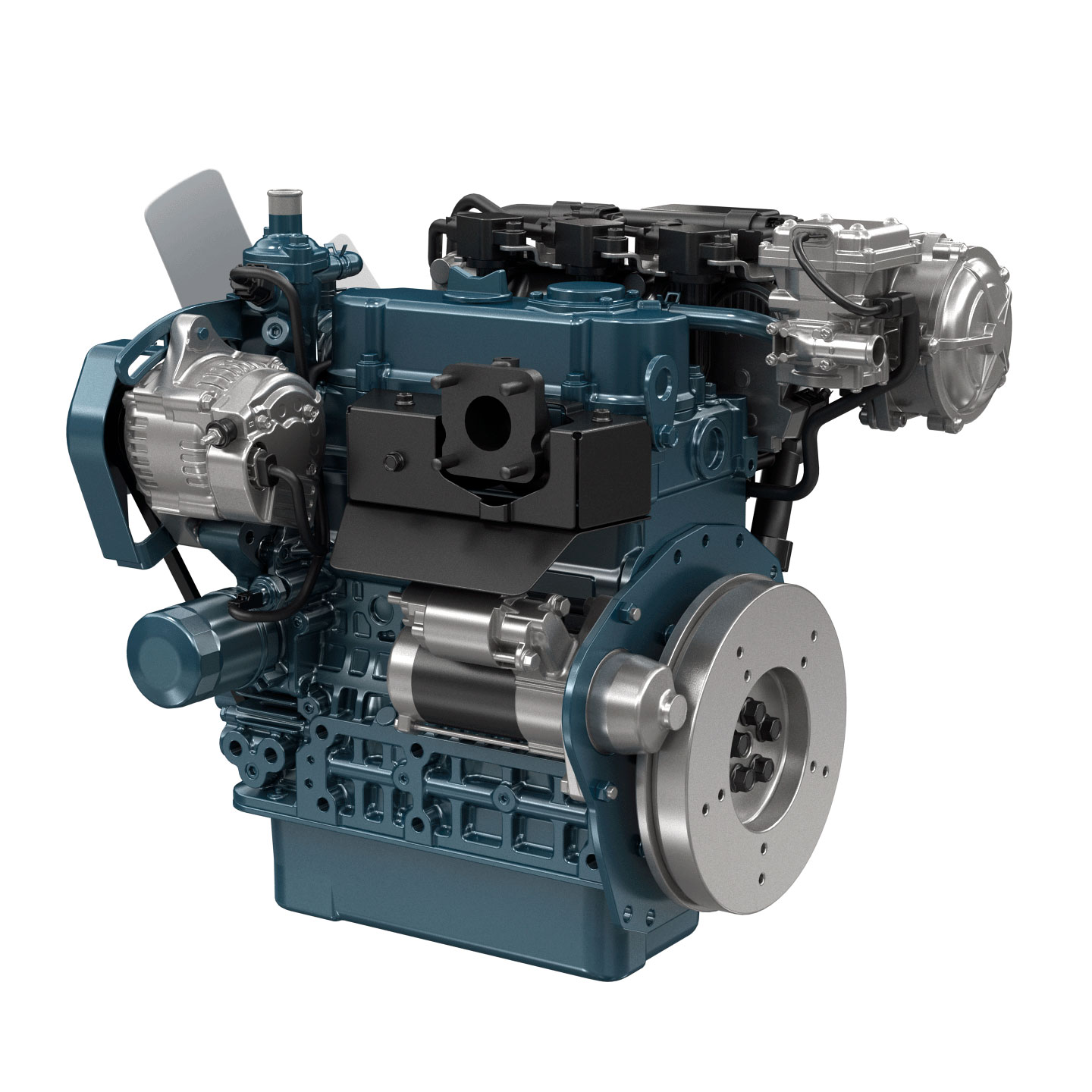

| 機関名称 | WG972-M-L-E4 |
|---|---|
| 適合排出ガス規制 | EPA Tier 4/CARB Tier 4 + EU Stage V |
| 形式 | Vertical, water cooled 4-cycle spark ignited engine |
| 燃料形式 | LPG |
| 気筒数 | 3 |
| 気筒径と行程 mm (in) | 74.5 x 73.6 (2.93 x 2.90) |
| 排気量 L (cu.in) | 0.962 (58.7) |
| 過給方式 | Naturally aspirated |
| 排出ガス後処理装置 | Three-way catalyst |
| 定格出力/回転数 *1 kW (HP) / rpm (SAE J1995に基づくグロス値 ) |
24.3 (32.6) / 3600 |
| 最大トルク *1 Nm (lb-ft) / rpm (SAE J1995に基づくグロス値 ) |
70.4 (51.9) / 1800 |

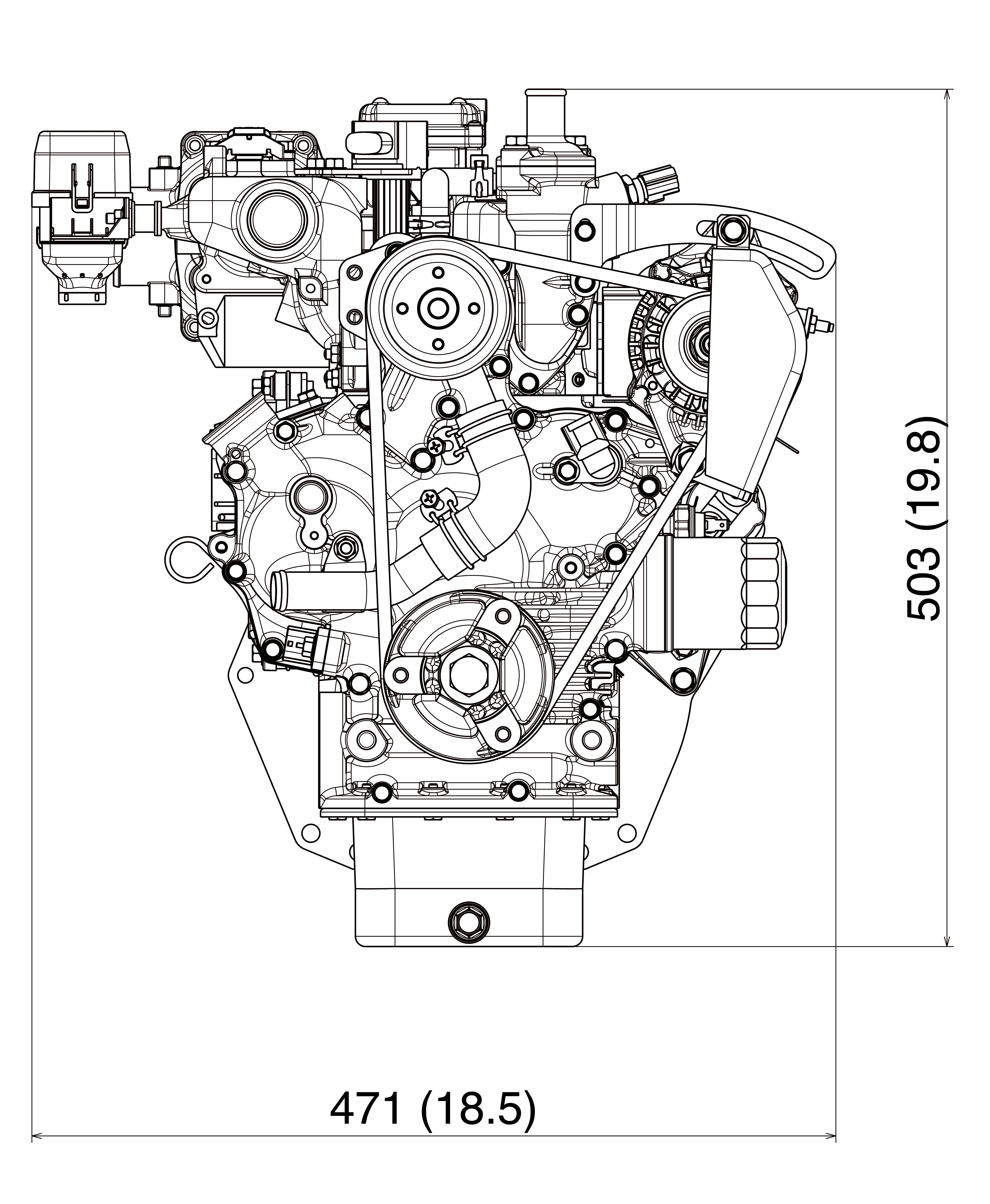

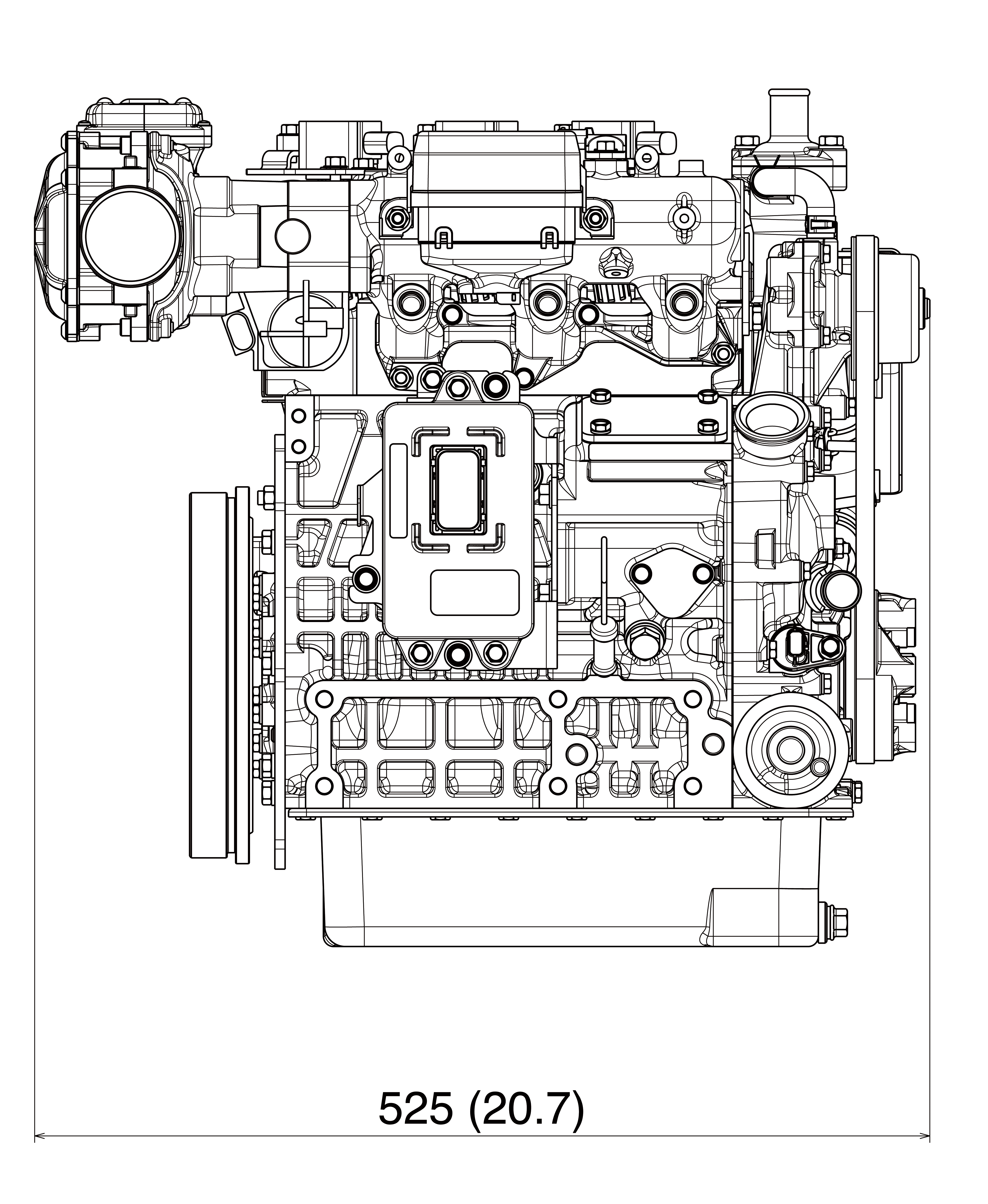

| 外観寸法 *2mm (in) | 525 x 471 x 503 (20.7 x 18.5 x 19.8) |
| 乾燥重量 *2kg (lb) (冷却ファン・後処理装置を除く) |
77.1 (170) |
Specifications are subjected to change without prior notice.
Dimensions and dry weight are according to Kubota's standard specification.
Dimensions and weight depend on completed specifications.
LPG: Commercial liquid propane gas only. Propane is more than 30%, Butane is less than 70% recommended.
Natural gas: The performance shown is with Japanese standard natural gas.
The lower heating value: : 49300 kJ/kg (11800 kcal/kg)
- *1: SAE J1995 gross intermittent
- *2: Exclude cooling fan, aftertreatment unit
